Product Name		55”UNB LED Monitor
Model Name		OLMU-5520S	OLMU-5550S
Back Light Unit Type		LED
Module Dimension (H x V. mm)		1209.6x680.4mm
Ratio		16:9
Number of Pixels		1920(H)x1080(V)
Pixel Pitch (mm)		0.630x0.630
Display Colors		1.06 Billion(10bits)
Luminance of White(Typical)		500	700
Contrast ratio (Dark Room)		1,400 : 1	1,400 : 1

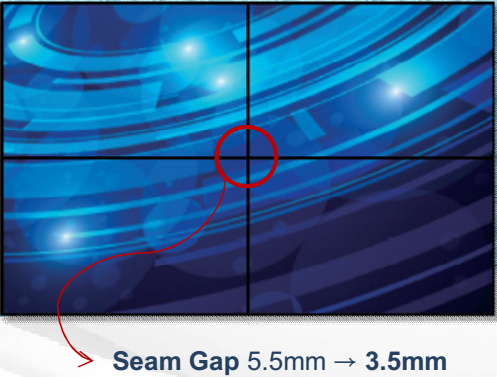

Bezel Size (U+D/L+R)		3.5 / 3.5 mm
Input Signal	Support Resolution	VGA,SVGA,XGA,SXGA,UXGA,WXGA, 480p,576p,720p(50/60),1080i(50/60),1080p(50/60)
	HDCP	CompliantwithHigh-bandwidthDigitalContentProtection (HDCP)usingDVIandHDMI1.3astandards
	Frequency	H:31.5~75kHz,V: 50,60Hz
In/Output Terminal	Input	DPx1,HDMIx2,DVI x1, PCx1,RS-232Cx1, LANx1,IRx1
	Output	DVI-D(ForHDMI1,HDMI2andDVI)x1,RS-232Cx1
Features	Temperature Sensor	Yes
	De-Interlace	Yes
	Noise Reduction	Yes
	Splicing up to 15x15	Yes
	Auto Fan Control System	Yes
	Auto Pixel Shift	Yes
	Auto Source Switching	Yes
	Auto Sleep and Wake up	Yes
	Auto Power Recovery	Yes
	Color Temperature Adjust	Yes
	Multi Language	English, Spanish, French, German…
Power Supply		AC100V ~ 240V±10% (50/60Hz)
Power Consumption	Maximum	200W	270W
	Average	115W	150W
	Stand-By	≤0.5W	≤0.5W
Surface Treatment		Haze10%,Hardcoating3H,Anti-Glare
Dimension (W x H x D mm)		1213.4x684.2x100.4
Weights		32±0.5kg
Operating Life Time		Typ.60,000Hrs
